Pure Nim, easy to use and flexible UI framework.

In active development

Sigui is inspired by QtQuick.

Libraries to see also: siwin, localize, pixie, shady

Table of contents

1. Examples
   • Basic
   • Custom component
2. Features
   • Events
   • Properties and bindings
   • Ui Objects
   • Signals
   • Animations and transitions
   • Layouts
   • makeLayout
   • Anchors
   • Layers
3. Builtin components
   • Text Area
4. Interaction with other libraries
   • localize

Examples

see also: tests

Basic

https://github.com/levovix0/sigui/assets/53170138/9509e245-2701-4dba-8237-a83f480aa635

import sigui, siwin

let win = newSiwinGlobals().newOpenglWindow(size=ivec2(1280, 720), title="Hello sigui").newUiWindow

win.makeLayout:
  - UiRect.new:
    this.centerIn(parent)
    w = 100  # same as this.w[] = 100
    h := this.w[]  # same as this.bindingValue this.h[]: this.w[]

    var state = 0.property

    color = binding:  # same as this.bindingValue this.color[]:
      (
        case state[]
        of 0: color(1, 0, 0)
        of 1: color(0, 1, 0)
        else: color(0, 0, 1)
      ).lighten(if mouse.hovered[]: 0.3 else: 0)

    - this.color.transition(0.4's)

    - MouseArea.new as mouse:
      this.fill(parent)
      on this.mouseDownAndUpInside:
        state[] = (state[] + 1) mod 3
      this.cursor = (ref Cursor)(kind: builtin, builtin: pointingHand)

run win.siwinWindow

Custom component

https://github.com/levovix0/sigui/assets/53170138/409cb2a3-5299-48a6-b01e-d8b7bb951fbb

import sigui/[uibase, mouseArea, animations, dolars]

type
  Switch* = ref object of Uiobj
    enabled*: Property[bool] = true.property
    isOn*: Property[bool]
    color*: Property[Col] = color(0, 0, 0).property

registerComponent Switch


method init*(this: Switch) =
  if this.initialized: return
  procCall this.super.init()

  this.isOn.changed.connectTo this:
    echo this

  this.makeLayout:
    w = 40
    h = 20

    - MouseArea.new as mouse:
      this.fill(parent)
      this.mouseDownAndUpInside.connectTo root:
        if root.enabled[]:
          root.isOn[] = not root.isOn[]

      - UiRectBorder.new:
        this.fill(parent)
        this.binding radius: min(this.w[], this.h[]) / 2 - 2
        borderWidth = 2
        color = "aaa"

        - UiRect.new:
          centerY = parent.center
          w := min(parent.w[], parent.h[]) - 8
          h := this.w[]
          radius := this.w[] / 2
          x = binding:
            if root.isOn[]:
              parent.w[] - this.w[] - 4
            else:
              4'f32
          color := root.color[]

          - this.x.transition(0.4's):
            easing = outCubicEasing

    this.newChildsObject = mouse


when isMainModule:
  preview(clearColor = color(1, 1, 1), margin = 20, withWindow = proc: Uiobj =
    var r = Switch.new
    init r
    r
  )

Features

Events

var event: Event[int]
var eventHandler: EventHandler

event.connect eventHandler, proc(e: int) =
  echo e

event.connectTo eventHandler, val:
  echo "another ", val

event.emit 10

Events can be connected to EventHandler or HasEventHandler object. note that Uiobj fits HasEventHandler concept.

Events can be disconnected

var e: Event[int]
var eh: EventHandler

# ...

disconnect e, eh  # disconnect all functions that was connected like connect(e, eh, ...)
disconnect e      # disconnect all functions that was connected to this event
disconnect eh     # disconnect all functions that was connected to this event handler

If you have a group of callbacks to diffirent events, that you periodically disconnect all at once, consider creating an EventHandler for this group.

You can check event.hasHandlers for optimizing if you need to do complex logic to emit event. Don't do work if no one notice!

Properties and bindings

var x: Property[int]
var y = CustomProperty[int](
  get: proc(): int = 1
  set: proc(v:  int) = echo v
)
var eh: EventHandler

x.changed.connectTo eh:
  echo "x changes observed by event handler"

eh.bindingValue y[]: x[]

x[] = 10  # both "x changes observed by event handler" and "10"
echo y[]  # 1

Property[T] is container for T, wrapping variable into property
CustomProperty[T] instead holds get and set closures
AnyProperty[T] is concept:

type AnyProperty[T] = concept a, var v
  a[] is T
  v[] = T
  a.changed is Event[T]
  a{} is T
  v{} = T

prop{}/prop{}= can be used instead of prop[]/prop[]= to not emit changed event.

For regular Property[T], prop{} returns var T. This is useful if you need to store sequences as properties:

var items: Property[seq[Property[int]]]

# ...

# adding an item
items{}.add 1.property
items.changed.emit()

# removing some items
items{}.delete 1, 5
items.changed.emit()

# just changing an item
items{}[2][] = 10
# we can emit changed here, but since items already stores Property, it should not be neccessary

binding macros macros group will automatically subscribe to all properties' change events if they are mentioned. It isn't magic, binding macro will determine if smth is property if you call [] on it (which is the get proc).

There is:

• uiobj.binding prop: ...: binds property that is field named prop inside uiobj
• eh.bindingValue val: ... binds to assignment to val
• eh.bindingProc f: ... bind to call f(eh, body). Useful for nim-like properties (image=, len=, etc.)

let this = Uiobj()
var otherProp: Property[float32]

this.binding x: max(this.y[], otherProp[])

will be translated to something like:

proc update_1() =
  this.x[] = max(this.y[], otherProp[])
update_1()
this.y.changed.connectTo this: update_1()
otherProp.changed.connectTo this: update_1()

Ui Objects

type
  MyComponent = ref object of Uiobj
    myState*: Property[int]
    myInternalState: int

registerComponent MyComponent


method init*(this: MyComponent) =
  procCall this.super.init()

  this.myState.changed.connectTo this:
    this.myInternalState = this.myState[]

  this.makeLayout:
    - UiRect.new:
      this.fill parent

# ... in makeLayout
- MyComponent.new:
  # implicitly called init
  # ...

Ui object is viewable and temporary state container.

Components are usually implemented as Ui objects. It is good practice to use composition to make your own components.

Global position of child ui object is global position of its parent plus its x and y. Global position is position from top-left courner of window. All positions is counted in pixels.

Ui objects can receive signals.

Signals

type
  MySignal = object of SubtreeSignal
    val: int

method recieve*(this: MyComponent, signal: Signal) =
  if signal of MySignal:
    echo signal.MySignal.val
    # note: not calling this.super.recieve(signal) to not send MySignal to childs of this object and not emit this.onSignal
  else:
    procCall this.super.recieve(signal)

# ...
obj.parentUiWindow.recieve MySignal(val: 10)
# or
obj.recieve MySignal(val: 10)

Signals is global "events", recieved by all ui objects in hierarchy. Window events is signals.

Signals are more useful than events when you need to control order in which signals are handled.

Ui objects also have onSignal event.

Animations and transitions

Animation is just interpolation between 2 values over time and doing action using this value.

Transition is just animation, that is subscribed to property changing, and its action is changing property.

Interpolation modifier (which is function, that takes float between 0..1 and returns modified float value around 0..1) can be attached to animation via anim.intermolation[]=

Built-in interpolation modifiers:

• linearInterpolation (default)
• outSquareInterpolation and outQubicInterpolation - faster at start, slower at end
• inSquareInterpolation and inQubicInterpolation - slower at start, faster at end
• outBounceInterpolation - like outSquare, but goes above target value and back at end
• inBounceInterpolation - like inSquare, but goes under start value at start

Layouts

not to be confused with makeLayout macro

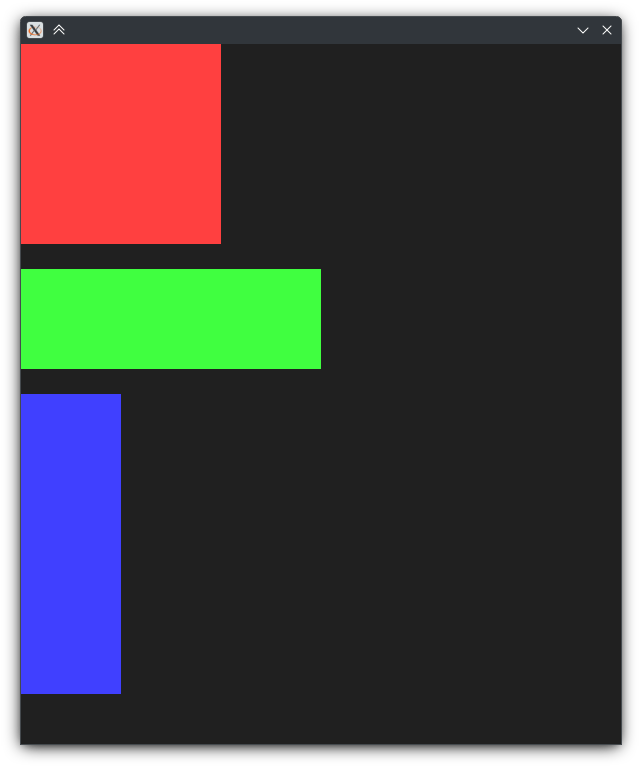

simple layouts:

- Layout.col(gap = 10):  # positions elements vertically with gap between them, use Layout.row() for horizontal
  - UiRect.new:
    w = 20
    h = 20
    color = "ff4040".color

  - UiRect.new:
    w = 30
    h = 10
    color = "40ff40".color

  - UiRect.new:
    w = 10
    h = 30
    color = "4040ff".color

layouts have many properties, see src/sigui/layouts.nim for all

- Layout.new:
  h = 720
  gap = 10
  wrapGap = 20
  orientation = vertical
  hugContent = false
  wrapHugContent = true
  fillWithSpaces = true
  consistentSpacing = true
  wrap = true
  elementsBeforeWrap = 3
  lengthBeforeWrap := this.w[]

  - UiRect.new:
    w = 20
    h = 30

  - InLayout.new:
    align = center

    - UiRect.new:
      w = 10
      h = 10

  - UiRect.new:
    w = 30
    w = 20

makeLayout

Make layout is a macro, that transforms tree-structured (ui)object creation into nested closures

type
  MyComponent = ref object of Uiobj
    changableChild: ChangableChild[UiRect]

registerComponent MyComponent


let x = MyComponent.new
x.makeLayout:
  - UiRect.new:
    this.fill parent
    this.binding color: rect2.color[].darken(0.5)  # objects created and aliased using `as` can be referenced before declaration

    - UiRect.new as rect2:
      w = 20
      h = 30
      color = color(1, 1, 1)

      root.changableChild --- UiRect.new:
        # actions in this body will be executed when root.changableChild is changed
        this.fill(parent, 2, 4)

makeLayout will produce something like this:

block makeLayoutBlock_1:
  let
    root {.used.} = x  # object, passed as a parameter to makeLayout will be called root

    # forward declare objects, which got a name through `- ... as name`
    rect2 = new(UiRect)

  block initializationBlock_2:
    proc proc_1(parent: typeof(root.parent); this: typeof(root)) =
      # for each object, `this` is current object, `parent` is this.parent
      initIfNeeded(this)
      let tmp_1 = new(UiRect)
      addChild(this, tmp_1)

      block initializationBlock_3:
        proc proc_2(parent: typeof(this); this: typeof(tmp_1)) =
          initIfNeeded(this)
          fill(this, parent, 0.0)
          this.binding color: rect2.color[].darken(0.5)  # binding is another macro
          addChild(this, rect2)

          block initializationBlock_4:
            proc proc_3(parent: typeof(this); this: typeof(rect2)) =
              initIfNeeded(this)
              this.w[] = 20
              this.h[] = 30
              this.color[] = color(1, 1, 1, 1.0)

              block changableChildInitializationBlock_1:  # changable childs is created like this:
                root.changableChild = addChangableChild(this, new(UiRect))

                proc tmp_2(parent: typeof(this); this: typeof(root.changableChild[])) =
                  block initializationBlock_5:
                    proc (parent: typeof(parent); this: typeof(this)) =
                      initIfNeeded(this)
                      fill(this, parent, 2, 4)(parent, this)

                tmp_2(this, root.changableChild[])
                connect(root.changableChild.changed, this.eventHandler, proc () =
                  tmp_2(this, root.changableChild[]), {}
                )

            proc_3(this, rect2)

        proc_2(this, tmp_1)

    proc_1(root.parent, root)

makeLayout also provides some sugar

Uiobj.new.makeLayout:
  on this.x.changed:
    ## this.x.changed.connectTo this: ...

  - MouseArea.new:
    on this.grabbed[] == true:
      ## this.grabbed.changed.connectTo this:
      ##   if this.grabbed[] == true: ...

changable childs

Changable childs could be used to re-build component tree on any event.

# ...in makeLaout macro...

var elements = ["first", "second"]
var elementsObj: ChangableChild[Layout]

elementsObj --- Layout.new:
  orientation = vertical
  gap = 10

  for i, element in elements:
    - TextArea.new:
      text = element

      on this.text.changed:
        elements[i] = this.text[]

  - InLayout.new:
    fillContainer = true

    - MouseArea.new:
      h = 20

      on this.mouseDownAndUpInside:
        elements.add "new"
        elementsObj[] = Layout.new  # re-build tree

      - UiText():
        this.centerIn parent
        text = "+"

The <--- ctor: prop[]; event[]; ... syntax can be used to re-build tree based on property changes

var elements = ["first", "second"].property
var elementsObj: ChangableChild[Layout]

elementsObj --- Layout.new:
  <--- Layout.new: elements[]

  # ...

  - InLayout.new:
    # ...

    - MouseArea.new:
      # ...

      this.mouseDownAndUpInside.connectTo this:
        elements{}.add "new"
        elements.changed.emit()

      # ...

Anchors

centering component is this.centerIn parent

- UiRect.new:
  this.fill parent
  color = color(0, 1, 0)

  - UiRect.new as rect:
    left = parent.center  # same as this.left = parent.center
    right = parent.right
    bottom = parent.bottom - 10  # -i always means up/left and +i means down/right, even if theese all are bottom anchors
    color = color(1, 0, 0)

  - UiRect.new:
    centerX = rect.left
    centerY = parent.center + 1
    color = color(0, 0, 1)

Layers

Unlike other ui libs, sigui don't have z-indices. Instead, you can directly specify component before, after or beforeChilds your component should be rendered.

- UiRect.new:
  #...

  - UiRect.new as rect:
    drawLayer = before parent

- UiRect.new:
  drawLayer = after rect

Custom shaders

import shady

type ChessTiles = ref object of Uiobj
  tileSize: float

registerComponent ChessTiles


method draw*(this: ChessTiles, ctx: DrawContext) =
  this.drawBefore(ctx)
  if this.visibility == visible:
    let shader = ctx.makeShader:
      {.version: "330 core".}

      proc vert(
        gl_Position: var Vec4,
        pos: var Vec2,
        ipos: Vec2,
        transform: Uniform[Mat4],
        size: Uniform[Vec2],
        px: Uniform[Vec2],
      ) =
        # default sigui specific transformation to correct locate component on screen
        # and convert opengl's coordinate system (-1..1) to sigui's coordinate system (0..windowSize_inPixels)
        # out `pos` is component-local (0..componentSize_inPixels)
        transformation(gl_Position, pos, size, px, ipos, transform)
        # don't use it if you don't need it (and don't call `ctx.passTransform` if so)

      proc frag(
        glCol: var Vec4,
        pos: Vec2,
        tileSize: Uniform[float],
      ) =
        if (
          (pos.x - ((pos.x / (tileSize * 2)).floor * (tileSize * 2)) >= tileSize) ==
          (pos.y - ((pos.y / (tileSize * 2)).floor * (tileSize * 2)) >= tileSize)
        ):
          glCol = vec4(1, 1, 1, 1)
        else:
          glCol = vec4(0, 0, 0, 1)

    glEnable(GlBlend)
    glBlendFuncSeparate(GlOne, GlOneMinusSrcAlpha, GlOne, GlOne)

    use shader.shader
    ctx.passTransform(shader, pos=(this.xy.posToGlobal(this.parent) + ctx.offset).round, size=this.wh.round, angle=0)
    shader.tileSize.uniform = this.tileSize

    draw ctx.rect

    glDisable(GlBlend)
  this.drawAfter(ctx)

Styles

const typefaceFile = staticRead "Roboto-Regular.ttf"
let typeface = parseTtf(typefaceFile)

- Styler.new:
  this.fill parent
  style = makeStyle:
    UiText:
      font = typeface.withSize(24)
      color = "ffffff"

    UiRect:
      color = "303030"
      radius = 5

      - UiText():
        this.centerIn parent
        text = "rect"
        color = "808080"


  - UiRect.new:
    x = 20
    y = 20
    w = 200
    h = 100

    - UiRect.new:
      this.centerIn root
      w = 50
      h = 50

  - UiText.new:
      bottom = parent.bottom
      text = "text with changed font"
      font = typeface.withSize(16)

# rect outside styler
- UiRect.new:
  right = parent.right
  bottom = parent.bottom
  w = 100
  h = 50

Builtin components

Text Area

https://github.com/levovix0/sigui/assets/53170138/56007317-7558-459d-bf79-ff9b44b7ac6b

Text area allows user to write text.
It has .active property.
It is cropped.
Configure .allowedInteractions if you need somthing advanced.

const typefaceFile = staticRead "../../tests/Roboto-Regular.ttf"
let typeface = parseTtf(typefaceFile)

- TextArea.new:
  text = "start text"
  this.textObj[].font[] = typeface.withSize(24)

  # note: create your own UiText to make tip/hint

Interaction with other libraries

localize

To make sigui react to language change, create LangVar property, and bind using it

import localize
requireLocalesToBeTranslated ("ru", "")

# ...

var locale = locale("ru").property

# ...

textobj.makeLayout:
  text := locale[].tr "text to be translated"

# ...

when isMainModule:
  updateTranslations()
